Air Sparge
The Air Sparging process injects pressurized air into the soil or ground water to facilitate the removal of harmful vapors from VOC contaminated soil or ground water. The process also promotes biodegradation and is often combined with soil vapor extraction (SVE) to improve removal.
Features
- Rotary Vane, Rotary Claw or Rotary Screw Air Compressors or Blowers
- PRM Flowmeters and Pressure Gauges
- Inlet Filtration
- Silencers
- One Touch Start-Up & Shut Down
- Nema IV Industrial Control Panel, UL Listed and Third Party Certified
| Available Models & Options | ||
|---|---|---|
|
Oil-Less Air Sparge System |
||
|
Carbon Filtration |
||
|
Built on skid, trailer, or container customized to your requirements |
||
|
Temperature Monitoring |
||
|
Full SCADA Telemetry Package including Web-Based Browser Interface |
||

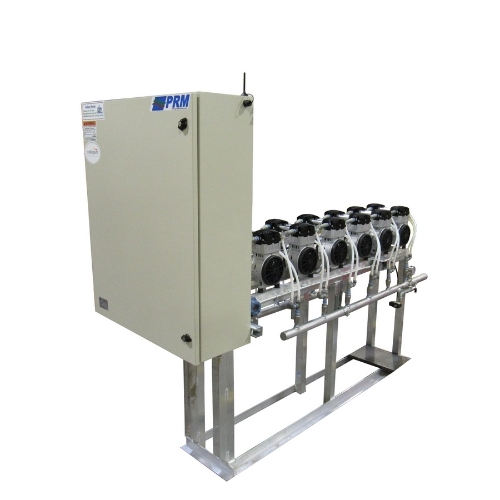

Oil-Less Air Sparge System Features
- Aluiminum Fram with Nema 4/12 Control Panel, 480V, 3-Phase Power
- 1/2″ OD High Temperature Teflon Lines with Intergrated Check Valves
- PLC for Compressor Rest Cycling
- 2″ Inlet Header with Inlet Filter and Silencer for Air Line Protection
PRM manufactures Air sparge systems for remediation sites which utilize industrial quality mini compressors for oil free air delivery and high pressure capable of operation up to 80 psig for air sparging applications.
PRM Air Sparge Systems
PRM has manufactured Air Sparging systems for the remediation of soil and groundwater for over 25 years. These systems can be used for petroleum and chlorinated contamination removal. Air sparging is generally more effective in sandy-silty soils.

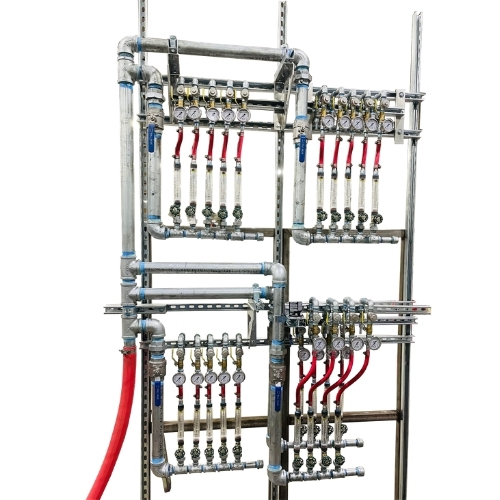

Air sparge systems typically consist of a NEMA IV Control panel, an air compressor, rotary vane or positive displacement blower to pressurize ambient air. A heat exchanger is used to reduce the temperature of the pressurized air stream prior to injection. The manifold system is used to distribute the pressurized air to the injection wells. These systems can be skid mounted or incorporated into a trailer or building.
- Positive displacement blowers are typically selected for moderate to high flow rates and low to moderate pressures.
- Rotary vane compressors are generally selected for lower flow rates and low to moderate pressures.
- Rotary screw compressors are a better choice for higher flow and
pressures.
Air Sparging systems are often used in conjunction with SVE systems that create a negative pressure in the formation to enhance the removal of the contaminated air from the Air Sparging process. When designing a dual system it is important to have the proper controls that allow the SVE and Air Sparge to properly interact.
Considerations in the design of an air sparge system include required air flow rate, air pressure, soil matrix, the number of injection wells, and the well design. Consult with the PRM design team for assistance in choosing the proper equipment for your site application.
