A Variety of Use Cases

Activated Carbon is used to filter harmful chemicals from contaminated water and air. It is composed of black granules of coal and other carbon-rich materials. As contaminated water or air flows through activated carbon, the contaminants sorb (stick) to the surface of the granules and are removed from the water or air.

PRM supplies 4mm (4×10) Vapor Phase Carbon, designed for the removal of organic contaminants from industrial and remediation air stream applications, and 8 x 30 Liquid Phase Carbon to decolorize and remove odor-causing impurities as well as adsoption of trace contaminants from groundwater. PRM can supply virgin and/or reactivated carbon for all of your environmental remediation projects.

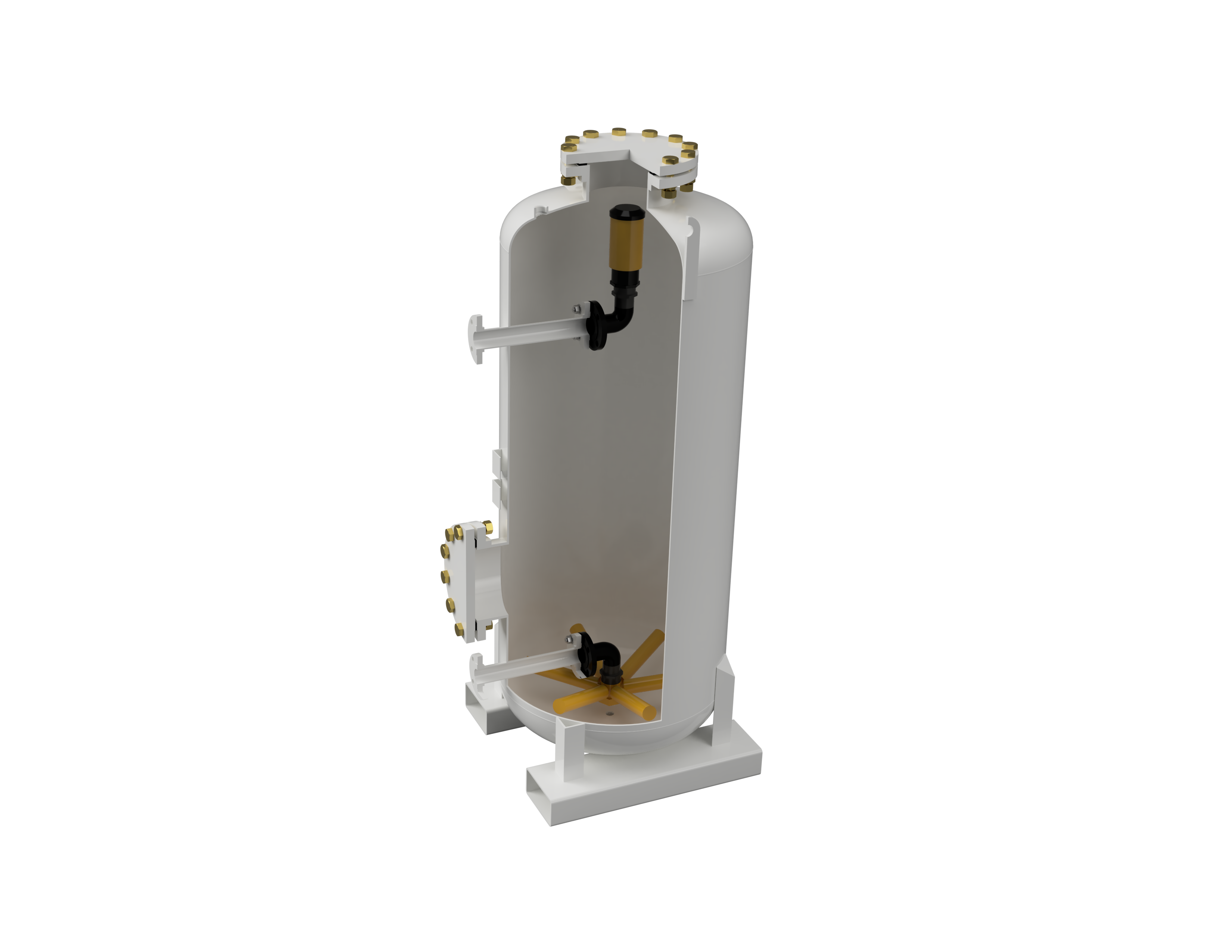

a cross section of a carbon vessel

Liquid Phase and Vapor Phase Activated Carbon

PRM Carbon Vessels are available in Vapor Phase and Liquid Phase. Vapor Phase Carbon Systems are designed for the removal of contaminants from industrial and remediation air streams. Liquid Phase Carbon Systems are built to absorb contaminants from groundwater.

Liquid Phase Carbon Filtration

PRM Carbon Vessels are available in a variety of sizes to fit your application, including 55, 90, 200, and 500 pound sizes. Typical applications are groundwater remediation for VOCs or industrial sites with similar applications.

Contact a PRM representative to learn more about our carbon vessels and activated carbon. Custom solutions and systems available.

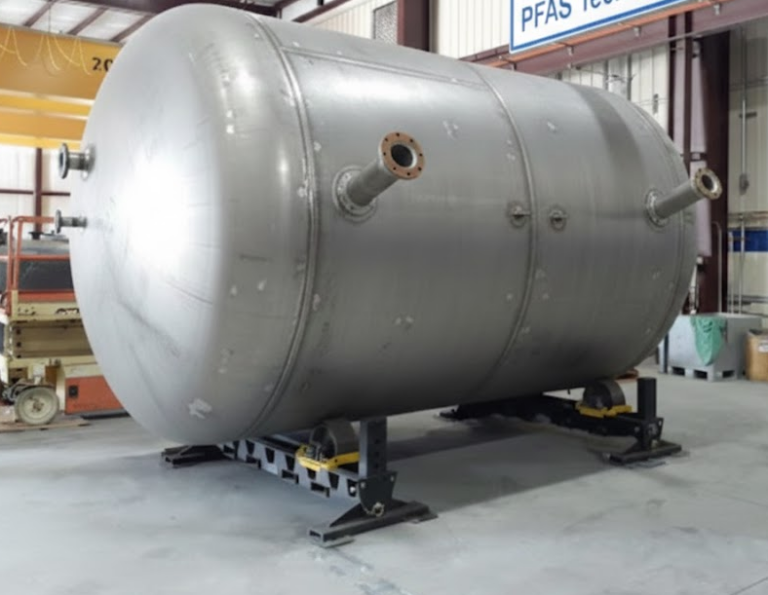

An ASME tank to house carbon

Vapor Phase Carbon Filtration

PRM Carbon units are used on remediation systems to treat vapor emissions with minimal backpressure. Units are designed to prevent channeling and are sized to maximize carbon effectiveness. Typical applications are treating the off gas from remediation of VOCs, chlorinated solvents, or industrial sites with similar applications. PRM offers pre-engineered systems and can customize a carbon system to specific project site requirements.

Carbon Solutions from PRMFiltration

PRM Carbon Vessels are available in a variety of sizes to fit your application, covering a range of size.  As an original equipment manufacturer, PRMFiltration also offers custom solutions and systems.  Contact a PRM Representative to discuss custom offerings.

Vapor Phase

Name Capacity Spec Sheet Store
VP-55 Vapor Phase Carbon Vessel
150 lbs
VP-85 Vapor Phase Carbon Vessel
300 lbs
VP-110 Vapor Phase Carbon Vessel
400 lbs
VP-2000gen2 Media Filter Tank
2,000 lbs
VP-3000gen2 Media Filter Tank
3,000 lbs
VP-5000gen2 Media Filter Tank
5,000 lbs
a carbon vessel

Liquid Phase

Name Capacity Spec Sheet Store
HP90 Liquid Phase Carbon Vessel
90 lbs
LP55 Liquid Phase Carbon Vessel
200 lbs
HP200 Liquid Phase Carbon Vessel
200 lbs
HP500 Liquid Phase Carbon Vessel
500 lbs
HP500RDL Liquid Phase Carbon Vessel
500 pounds
ASME Certified HP500 Liquid Phase Carbon Vessel
500 lbs
HP1000RDL Liquid Phase Carbon Vessel
1000 lbs
HP1000 Liquid Phase Carbon Vessel
1000 lbs
HP2000RDL Liquid Phase Carbon Vessel
2000 lbs
HP2000RDL High Pressure Liquid Phase Carbon Vessel, 150 PSI
2000 lbs

Features

  • ASME Certified Pressure Vessels Available
  • In-house Manufactured Carbon Vessels
  • Heavy Duty Bases or Forks for Stability and Ease of Use
  • Inlet and Outlet Diffusers for Even Flow and Excellent Backwash Ratios
  • Heavy Duty Carbon Steel, Aluminum, or Fiberglass Units Available
  • UV Resistant Coated Exterior
  • Single Bolt Gasketed Manway for Easy Maintenance

Product Specifications

Vapor Phase Carbon:
  • ASME Certified Pressure Vessels Available
  • CCL4 Adsorption: 60% & 70% min.
  • Apparent Density: 0.45-0.49 (30 lb/ft3)
  • Hardness: 97-98
  • Moisture as packed: 5% max.
  • Ash: 9 to 12% max.
  • Surface Area: 950-1150
  • Ignition Temp: 400 Degrees Celsius

Liquid Phase Carbon:
  • ASME Certified Pressure Vessels Available
  • Iodine Value: 900 mg/g min.
  • Bulk Density lbs/cf 24-28
  • Hardness (Ball pan): 90% min.
  • Moisture as packed: 3% max.
  • Ash: 12% max
  • Surface Area: 950-1050
  • Ignition Temp: 400 Degrees Celsius
