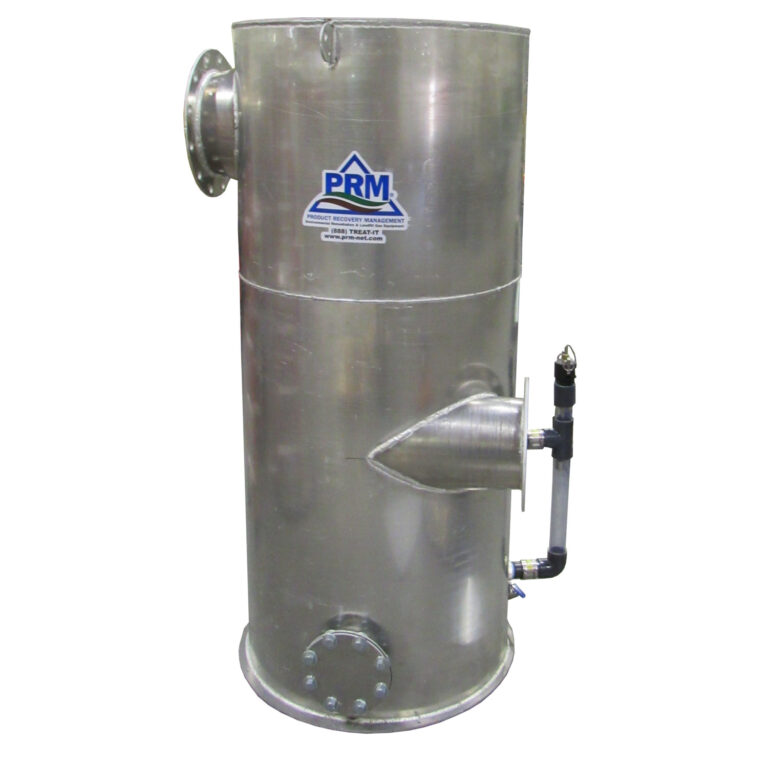

Moisture Separators
PRM manufactures high quality Moisture Separators specifically for SVE and Dual Phase applications. Moisture Separators are used in conjunction with many remediation and landfill process equipment to remove unwanted moisture. They are often called knockout tanks.
Features
- Carbon Steel MS Tanks are epoxy coated inside with a 3 layer chemically bonded epoxy powder coating
- Tangential inlet ports for maximum water removal
- Internal centrifugal isolation ring
- Heavy gauge carbon steel for vacuum application to 28Hg
- Exterior UV powder coating that provides long outdoor life
- Interior baffle plate designed for the flow range of the tank
- Large six-inch inspection hole for easy clean-out
| Available Options | ||
|---|---|---|
|
Econo Series Model Designed For Efficiency |
||
|
Mechanical float backup system (all Stainless Steel parts) |
||
|
ASME Certification |
||
|
Skid Mounted |
||
|
Aluminum, Alloy, or Stainless Steel Construction |
||
|
Higher Gauge Corrosion Tolerance |
||
Moisture Separator Models
- MS-30 – 200 SCFM – 15 Gallon Liquid Capacity
- MS-60 – 300 SCFM – 30 Gallon Liquid Capacity
- MS-80 – 400 SCFM – 40 Gallon Liquid Capacity
- MS-120 – 450 SCFM – 60 Gallon Liquid Capacity
- MS-200 – 600 SCFM – 100 Gallon Liquid Capacity
- MS-400 – 1800 SCFM – 200 Gallon Liquid Capacity
Description
The PRM Moisture Separator is internally manufactured and our design ensures highly efficient operation. These moisture separators are typically used with our SVE, DPE, or blower stations. They can be incorporated in other processes to remove moisture. Our standard units are designed for 15 to 400 gallons per minute liquid capacity. Standard construction is heavy gauge carbon steel, UV resistant exterior powder coating, epoxy internal coating, tangential inlet port for optimum liquid removal, internal centrifugal isolation ring, and 6” inspection ports. For applications where high GPM is expected an over sized unit with a mist eliminator is recommended.
