Soil Vapor Extraction (SVE)
Soil Vapor Extraction (SVE) systems consist of a blower package connected to a series of wells to apply a negative pressure in the subsurface, above the water table, to remove vapor phase contaminants. Once the vapors are removed they are typically treated at the surface. This technology is often used in conjunction with Air Sparging to increase efficiency and address contaminated groundwater.
Features
- Blower and Motor
- PRM Moisture Separator
- Particulate Inlet Filter, Auto Dilution
- Variable Frequency Drives
- Fully Automated- One Touch Start-Up & Shut Down
- Nema IV Industrial Control Panel, UL Listed and Third Party Certified
| Available Options | ||
|---|---|---|
|
Full SCADA Telemetry Package Including Web Based Browser Interface |
||
|
Temperature Monitoring |
||
|
Carbon Filtration |
||
|
Build on a Skid, Trailer, or Container |
||
Benefits
- Factory Soil Vapor Extraction tested systems can be skid mounted, open trailer, closed trailer, or custom enclosures.
- Systems can be integrated with NEMA IV, 4 or 7 control panels, gauges, moisture separators, off gas treatment and filtration per your specifications.
- Systems designs up to 10,000 CFM.
- SVE Systems are easily integrated with new or existing equipment.
- Blower manufacturers include: Roots, Rotron, Gast, Atlantic Fluidics, Busch, Rietschle, and Dekker.
- Blower types include Rotary Claw, Multistage Regenerative, and Positive Displacement.
Description
Our design experts can assist you in selecting the proper system to meet your specific site design requirements.

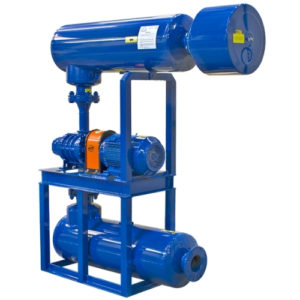

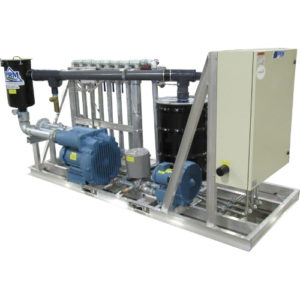

PRM Soil Vapor Extraction Systems typically include a NEMA 4 control panel, blower or vacuum pump, motor, moisture separator, high level switch, header assembly, and an inlet filter in an integrated factory tested package. Optional items such as vacuum gauges, low indicators, temperature indicators, and filtration can be specified per your application.
When designing your system, it is important to consider the number of extraction wells, required flow rate, site elevation, friction losses from piping, headers, carbon systems, oxidizer, heat exchangers, or other equipment that can affect the blower performance.
Regenerative blowers are a good choice for low to moderate flow-vacuum-pressure requirements. They produce low noise levels and are an economical option. Positive displacement blowers are generally used in higher flow-vacuum-pressure, and are more economical due to lower horsepower requirements. When using positive displacement blowers it is important to match the rotation speeds for optimum efficiency and reliability while regulating noise levels. Contact PRM if you need assistance in sizing your blower for specific project requirements.
Soil Vapor Extraction Systems can be combined with other technologies such as liquid ring pumps, air sparge systems, and pump and treat systems to enhance performance.
